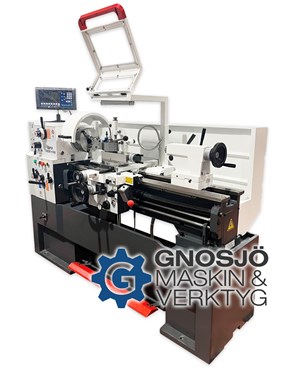

Lathe CD6241x1000 with DRO and accessories
Without VAT:
121171
Not in stock
Article Code CD6241-D2
Print| Maker | Weight | 1380 kg | |
| Model | CD6241/D2 | Size | 1,97 x 0,92 m |
| Ser. No | Condition | 10/10 | |
| Year | Delivery Code | 999-600016 |
Tool accessories
Machine are delivered as standard with 2-axis digital chuck guard appron guard 3-jaw chuck 200 mm faceplate 350 mm 4-jaw plate 250 mm tool post 5 pcs toolholders steady rest following rest coolant kit lamp thread clock revolver stop manuals (SE/ENG) and more...Specification
Center height: 205 mm
Center distance: 1000 mm
Swing over bed: 410 mm
Swing over cross slide: 255 mm
Swing in gap Ø: 580 mm
Gap width: 190 mm
Width of bed: 250 mm
Total cross slide travel: 210 mm
Total top slide travel: 140 mm
Spindle bore: 52 mm
Spindle nose: D1-6
Morse taper in spindle: MT6
Spindle speed: 45-1800 rpm (16 pcs)
Lead screw dia. & pitch: 28x6 mm
Thread ptches INCH: 45 pcs (2-72 TPI)
Thread pitches MM: 39 pcs (0,2-14 t/mm)
Longitudinal feeding: 17 pcs (0,05-1,7 mm/v)
Cross feeding: 17 pcs (0,025-0,85 mm/v)
Tailstock quill travel: 120 mm
Tailstock quill diameter: 50 mm
Morse taper in tailstock: MT4
Spindle motor (2-speed): 2,2/3,3 kW (720/1440 rpm)
Size WxDxH: 1,97x0,92x1,54 (1,98) m *
Transport size LxDxH: 2,05x1,06x1,75 m
Transport weight: 1370 kg
*: Specified height is without machine feet. The measurement shown inside the parentheses is with the machine cover folded up.
