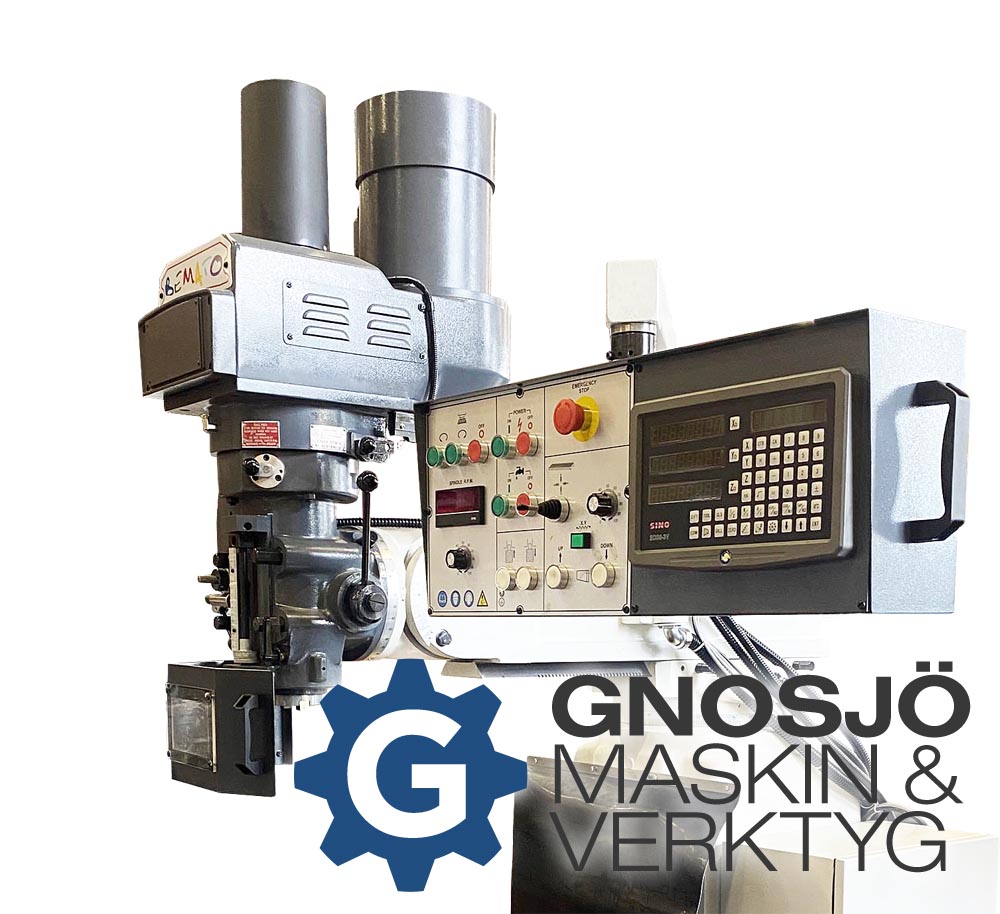

Milling machine Bemato BMT4500V

Specification

This milling machine are produced in Taiwan and our customers have find the machine verry popular . Machine body is made from MEEHANITE casting, all slideways are hardened and precusely grinded. X/ Y-axes are ciated with Turcute-B which provides low friction, long life and minimal wear. The work table is also hardened. Frequency-controlled spindle speed and working feed (X / Y) make it easy to set desired spindle speed and feeding rate. All axles (X/Y/Z) have rapid feed. Automatic tool drawbar, 3-axis digital, work lighting, etc. The machine is CE marked.

Table size: 1500x305 mm

Table T-slot: 16 mm (3 pcs)

Travel manual: X1000, Y374, Z403 mm

Travel auto: X1000, Y397, Z403 mm

Variable adjustable (inverter) work feed in X/Y: 21-930 mm/min (1/2 Hp)

Rapid feed in X/Y: 2300 mm/min

Rapind feed in Z: 930 mm/min

Spindle taper: ISO40

Variable spindle speed (inverter): 72-4200 rpm

Arbetshöjd (spindelnos - bord): 85-470 mm

Spindle center to column surface: 265-750 mm

Quill travel: 125 mm

Automatic quill stroke: 0,04/0,08/0,13 mm/r

Head swiveling R/L: 90°

Head swiveling F/B: 35°

Spindle motor: 5 Hp

Coolant pump: 1/8 Hp
