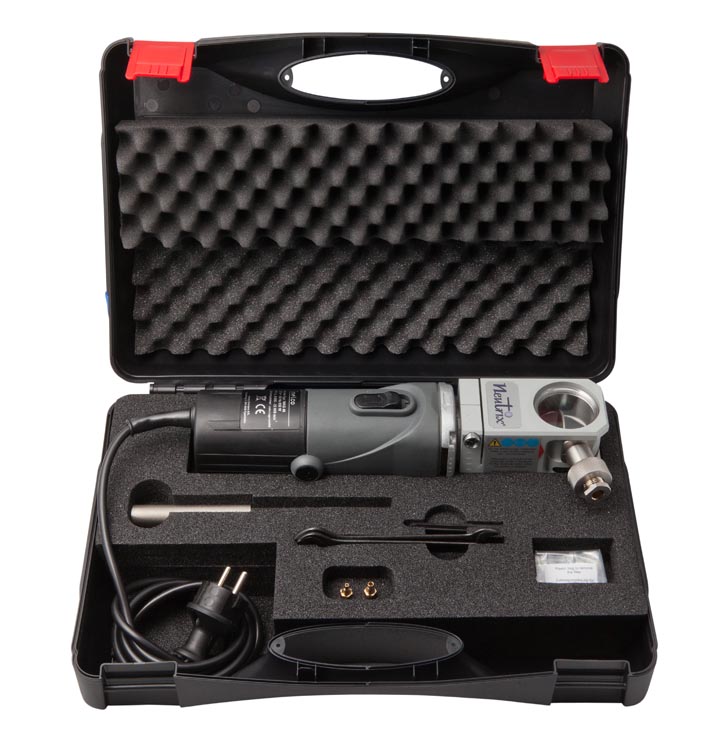

Tungsten electrode grinder Neutrix

Specification

NEUTRIX is a handheld and portable grinding machine that fulfils the equirements for safe and environmentally friendly grinding of Tungsten electrodes in high quality for TIG and plasma welding. Grinding in the longitudinal direction of the electrode, variable grinding angle, three grinding positions on the diamond disc and the electrode holder ensure efficient grinding. NEUTRIX can grind electrodes down to lengths of 19 mm and even 15 mm with a special clamp, for example for orbital welding. The inspection cover on the
grinder makes it easy to follow the grinding process and to ensure that the electrode is not generating sparks during grinding. This
avoids the electrode being damaged by high temperatures. Insert the electrode in electrode holder and lock it in the stick-out. Set the variable degree scale at the desired angle. Place the electrode holder in the grinder. Start the grinder and rotate the holder until it reaches the stop and the grinding is finished.

Electrode size: Ø0,8-4 mm

Min length: 19 mm standard (15 mm with special electrode clamp)

Tip angles: 15°-180° (7,5°-90° grinding anlge)

Motor: 850 W

Weight: 2,8 kg

Speed: 22000-28000 v/min
