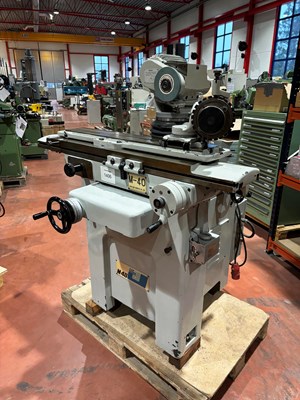

Tool ginder Topwork M40 with accessories

Without VAT:

45000

In Stock

Article Code 01H-00802

Maker	Topwork	Weight	970 kg
Model	M40	Size
Ser. No		Condition	6/10
Year		Delivery Code	999-101048

Tool accessories

Workhead with dividing plate (24-dividing) drawbar collet chuck ISO50 with 8 pcs collet 6-10-12-12-16-20-25-30 mm tailstock (springy) tailstock diamond holder follow finger 4 pcs wheel guards dividing plate (25-dividing) morse taper sleeve MT5-4 & MT5-2 center 2 pcs nave (large) 4 pcs nave (smaller) 4 pcs long naves dust collector/coolant pump cabinet for accessories some grinding wheels and tools etc.

Specification

Longitudinal table travel: 400 mm

Cross movement ov saddle: 250

Vertical movement of wheel head: 250 mm

Distance between center: 700 mm

Distance between tailstock-workhead: 580 mm

Table size: 940x135 mm

Rotative angle of table R/L: 0-60°

Rotative angle of wheel head: 360°

Inclination of wheel head: +/- 15°

Spindle speed: 2600/3700/6200 rpm
